sdr.OQPSK

class sdr.OQPSK(sdr.PSK)

Implements offset quadrature phase-shift keying (OQPSK) modulation and demodulation.

Notes¶

Offset QPSK is a linear phase modulation scheme similar to conventional QPSK. One key distinction is that the I and Q channels transition independently, one half symbol apart. This prevents symbol transitions through the origin, which results in a lower peak-to-average power ratio (PAPR).

The modulation order $M = 2^{k}$ is a power of 2 and indicates the number of phases used. The input bit stream is taken $k$ bits at a time to create decimal symbols $s [k] \in {0, \dots, M - 1}$ . These decimal symbols $s [k]$ are then mapped to complex symbols $a [k] \in C$ by the equation

I [k] + j Q [k] = \exp [j (\frac{2 π}{M} s [k] + ϕ)]

\begin{array}{r} \begin{aligned} a [k + 0] & = I [k] + j Q [k - 1] \\ a [k + 1 / 2] & = I [k] + j Q [k] \\ a [k + 1] & = I [k + 1] + j Q [k] \\ a [k + 3 / 2] & = I [k + 1] + j Q [k + 1] \end{aligned} \end{array}

Variable nomenclature

$k$ : Symbol index
$n$ : Sample index
$s [k]$ : Decimal symbols
$a [k]$ Complex symbols
$x [n]$ : Pulse-shaped complex samples
$\tilde{x} [n]$ : Received (noisy) pulse-shaped complex samples
$\tilde{a} [k]$ : Received (noisy) complex symbols
$\hat{a} [k]$ : Complex symbol decisions
$\hat{s} [k]$ : Decimal symbol decisions

Examples¶

Create a OQPSK modem.

In [1]: oqpsk = sdr.OQPSK(pulse_shape="srrc"); oqpsk
Out[1]: sdr.OQPSK(phase_offset=45, symbol_labels='gray')

In [2]: plt.figure(); \
   ...: sdr.plot.symbol_map(oqpsk);
   ...:

Generate a random bit stream, convert to 2-bit symbols, and map to complex symbols.

In [3]: bits = np.random.randint(0, 2, 1000); bits[0:8]
Out[3]: array([0, 1, 1, 0, 1, 1, 1, 1])

In [4]: symbols = sdr.pack(bits, oqpsk.bps); symbols[0:4]
Out[4]: array([1, 2, 3, 3], dtype=uint8)

In [5]: complex_symbols = oqpsk.map_symbols(symbols); complex_symbols[0:4]
Out[5]:
array([-0.70710678+0.j        , -0.70710678+0.70710678j,
        0.70710678+0.70710678j,  0.70710678-0.70710678j])

In [6]: plt.figure(); \
   ...: sdr.plot.constellation(complex_symbols, linestyle="-");
   ...:

Modulate and pulse shape the symbols to a complex baseband signal.

In [7]: tx_samples = oqpsk.modulate(symbols)

In [8]: plt.figure(); \
   ...: sdr.plot.time_domain(tx_samples[0:50*oqpsk.sps]);
   ...:

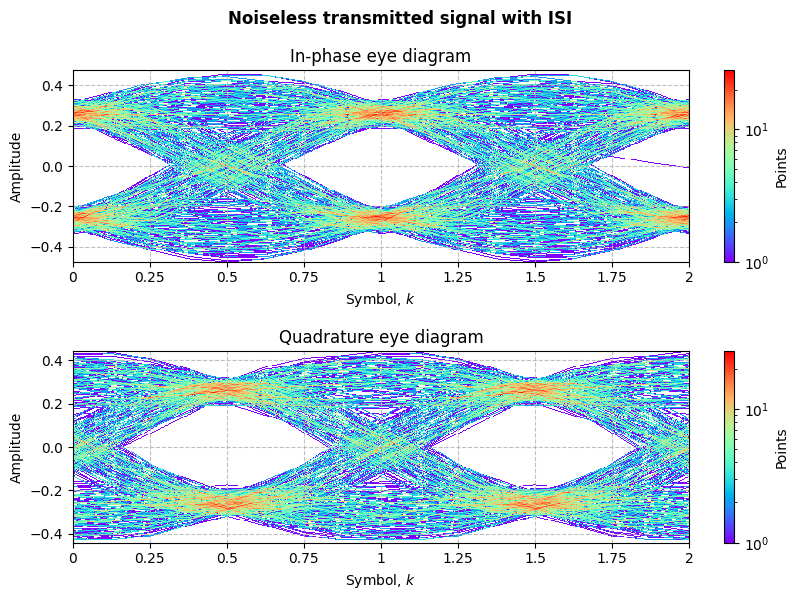

Examine the eye diagram of the pulse-shaped transmitted signal. The SRRC pulse shape is not a Nyquist filter, so ISI is present.

In [9]: plt.figure(figsize=(8, 6)); \
   ...: sdr.plot.eye(tx_samples[5*oqpsk.sps : -5*oqpsk.sps], oqpsk.sps, persistence=True); \
   ...: plt.suptitle("Noiseless transmitted signal with ISI");
   ...:

Add AWGN noise such that $E_{b} / N_{0} = 30$ dB.

In [10]: ebn0 = 30; \
   ....: snr = sdr.ebn0_to_snr(ebn0, bps=oqpsk.bps, sps=oqpsk.sps); \
   ....: rx_samples = sdr.awgn(tx_samples, snr=snr)
   ....:

In [11]: plt.figure(); \
   ....: sdr.plot.time_domain(rx_samples[0:50*oqpsk.sps]);
   ....:

Manually apply a matched filter. Examine the eye diagram of the matched filtered received signal. The two cascaded SRRC filters create a Nyquist RC filter. Therefore, the ISI is removed.

In [12]: mf = sdr.FIR(oqpsk.pulse_shape); \
   ....: mf_samples = mf(rx_samples)
   ....:

In [13]: plt.figure(figsize=(8, 6)); \
   ....: sdr.plot.eye(mf_samples[10*oqpsk.sps : -10*oqpsk.sps], oqpsk.sps, persistence=True); \
   ....: plt.suptitle("Noisy received and matched filtered signal without ISI");
   ....:

Matched filter and demodulate. Note, the first symbol has $Q = 0$ and the last symbol has $I = 0$ .

In [14]: rx_symbols, rx_complex_symbols, _ = oqpsk.demodulate(rx_samples)

# The symbol decisions are error-free
In [15]: np.array_equal(symbols, rx_symbols)
Out[15]: True

In [16]: plt.figure(); \
   ....: sdr.plot.constellation(rx_complex_symbols);
   ....:

See the Phase-shift keying example.

Constructors¶

OQPSK(phase_offset: float = 45, ...): Creates a new OQPSK object.

Methods¶

ber(ebn0: ArrayLike, diff_encoded: bool = False) → NDArray[float64]: Computes the bit error rate (BER) at the provided $E_{b} / N_{0}$ values.

ser(esn0: ArrayLike, diff_encoded: bool = False) → NDArray[float64]: Computes the symbol error rate (SER) at the provided $E_{s} / N_{0}$ values.

map_symbols(s: ArrayLike) → NDArray[complex128]: Converts the decimal symbols into complex symbols.

decide_symbols(a_tilde) → tuple[NDArray[int_], NDArray[complex128]]: Converts the received complex symbols into MLE symbol decisions.

modulate(s: ArrayLike) → NDArray[complex128]: Modulates the decimal symbols into pulse-shaped complex samples.

demodulate(...) → tuple[NDArray[int_], NDArray[complex128], NDArray[complex128]]: Demodulates the pulse-shaped complex samples.

Properties¶

property phase_offset : float: The phase offset $ϕ$ in degrees.

property symbol_map : NDArray[np.complex128]: The symbol map ${0, \dots, M - 1} \mapsto C$ .

property order : int: The modulation order $M = 2^{k}$ .

property bps : int: The number of coded bits per symbol $k = \log_{2} M$ .

property sps : int: The number of samples per symbol $f_{s} / f_{s y m}$ .

property pulse_shape : NDArray[np.float64]: The pulse shape $h [n]$ of the modulated signal.

property tx_filter : Interpolator: The transmit interpolating pulse shaping filter.

property rx_filter : Decimator: The receive decimating matched filter.
